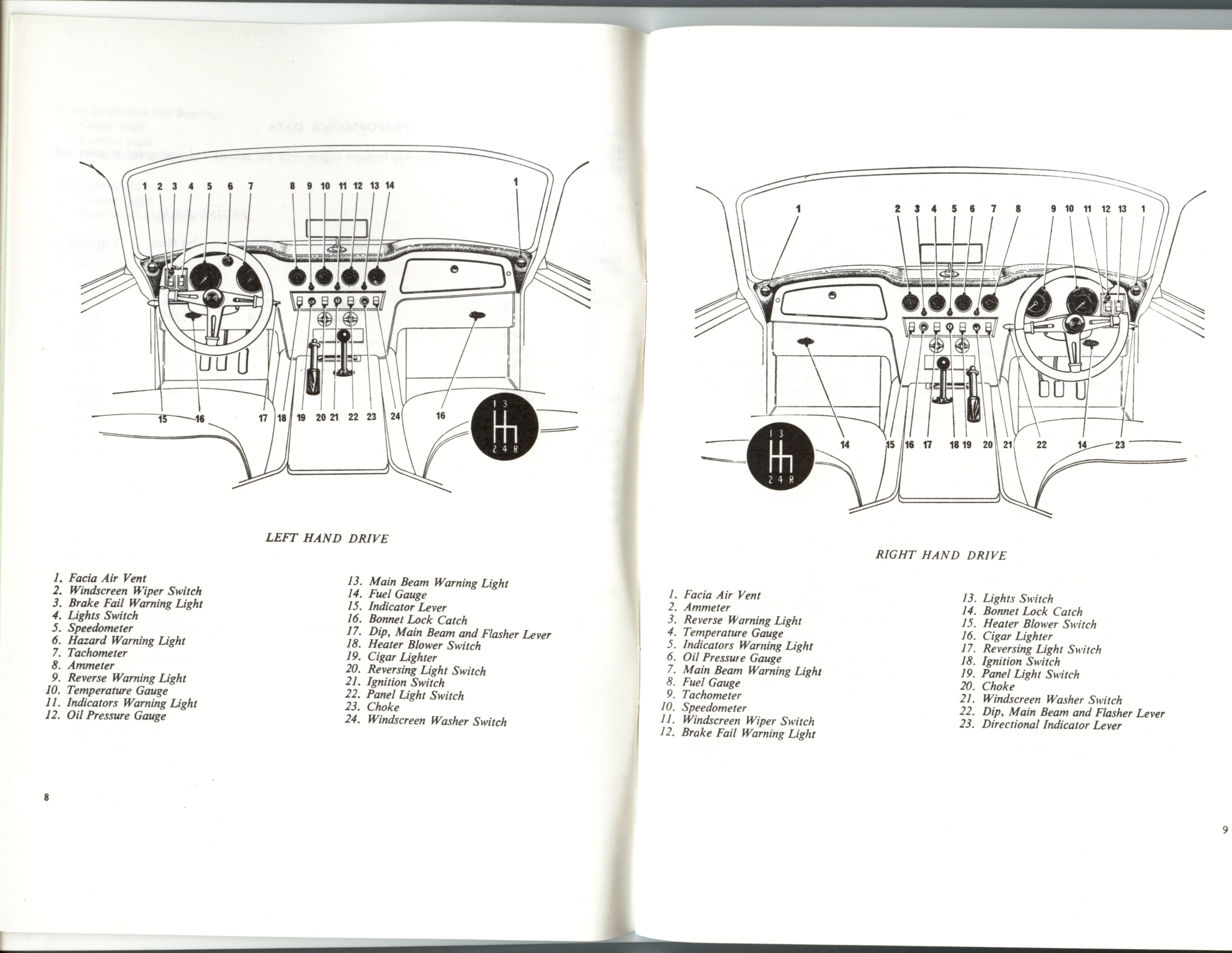

TVR Vixen Dashboard
Click for larger Picture
TVR Vixen Owners Manual
Click to open
TVR Wiring Diagram
Many thanks to "Russel's Garage" for the Picture!
http://www.hockerley.freeserve.co.uk/
TVR Vixen Wiring Diagram
TVR 2500M Wiring Diagram

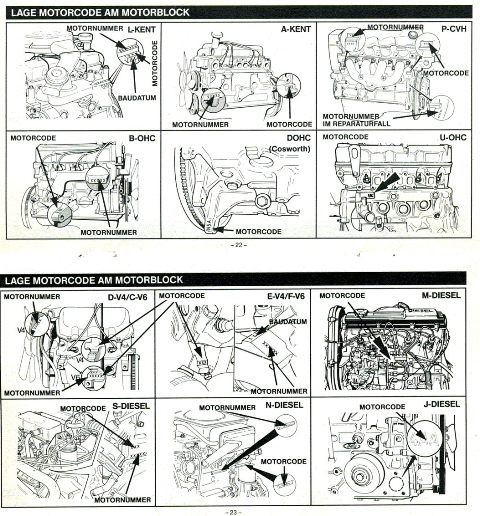

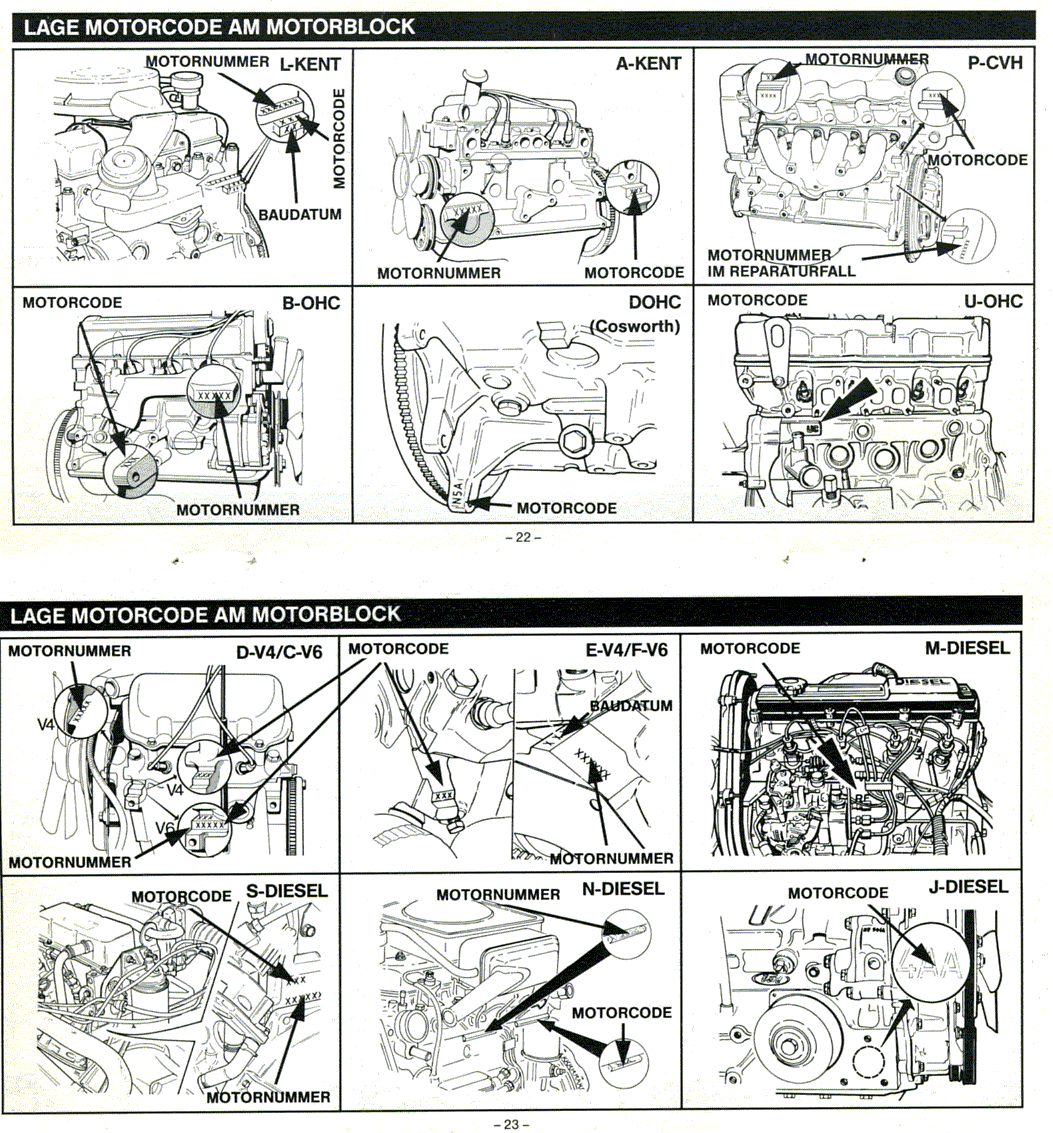

Where to find the Kent Engine Numbers
TVR 3000M Technical infos
3000M Service Schedule 1973
TVR 3000M 1973 Specification

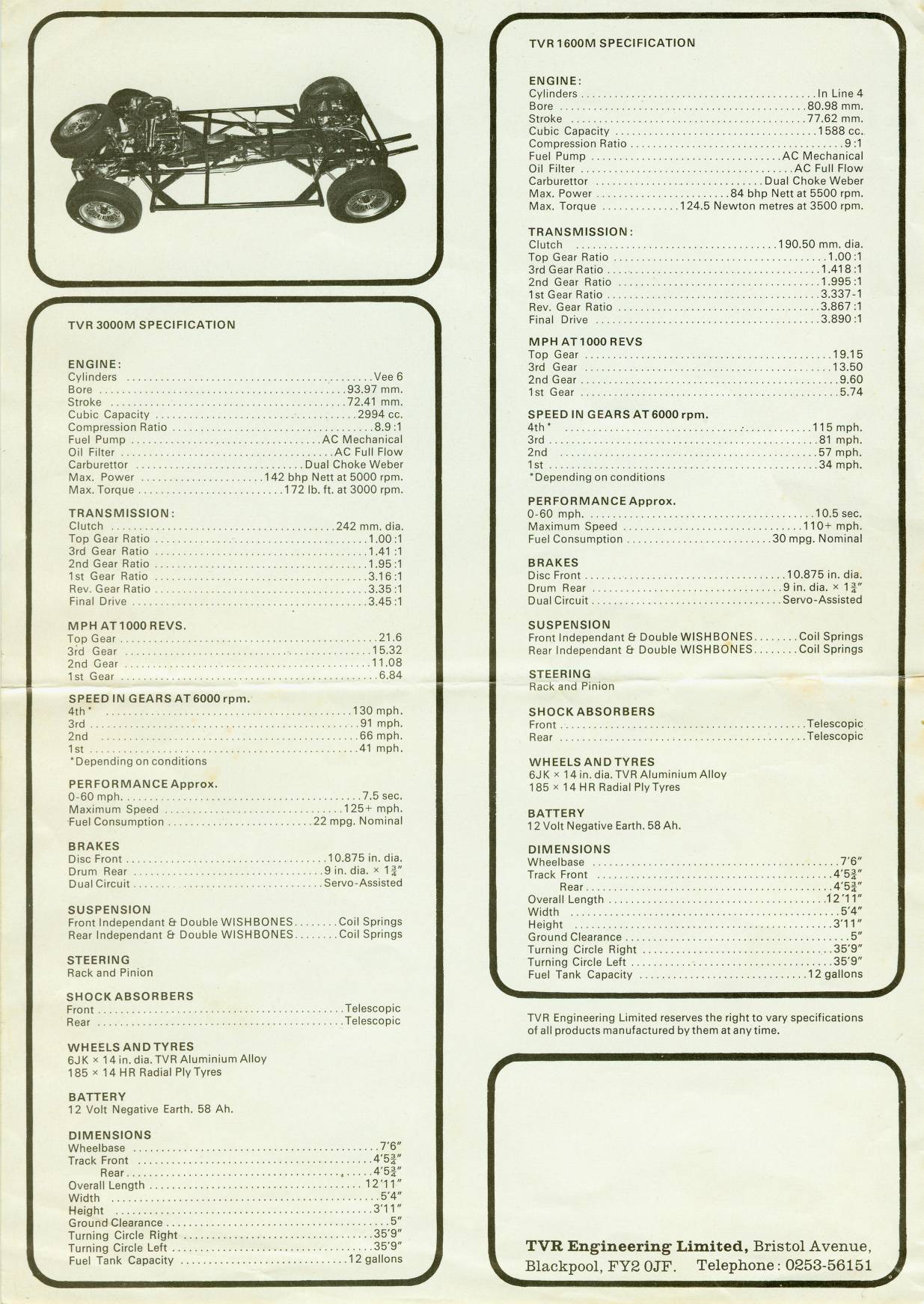

TVR 3000M&1600M Specification

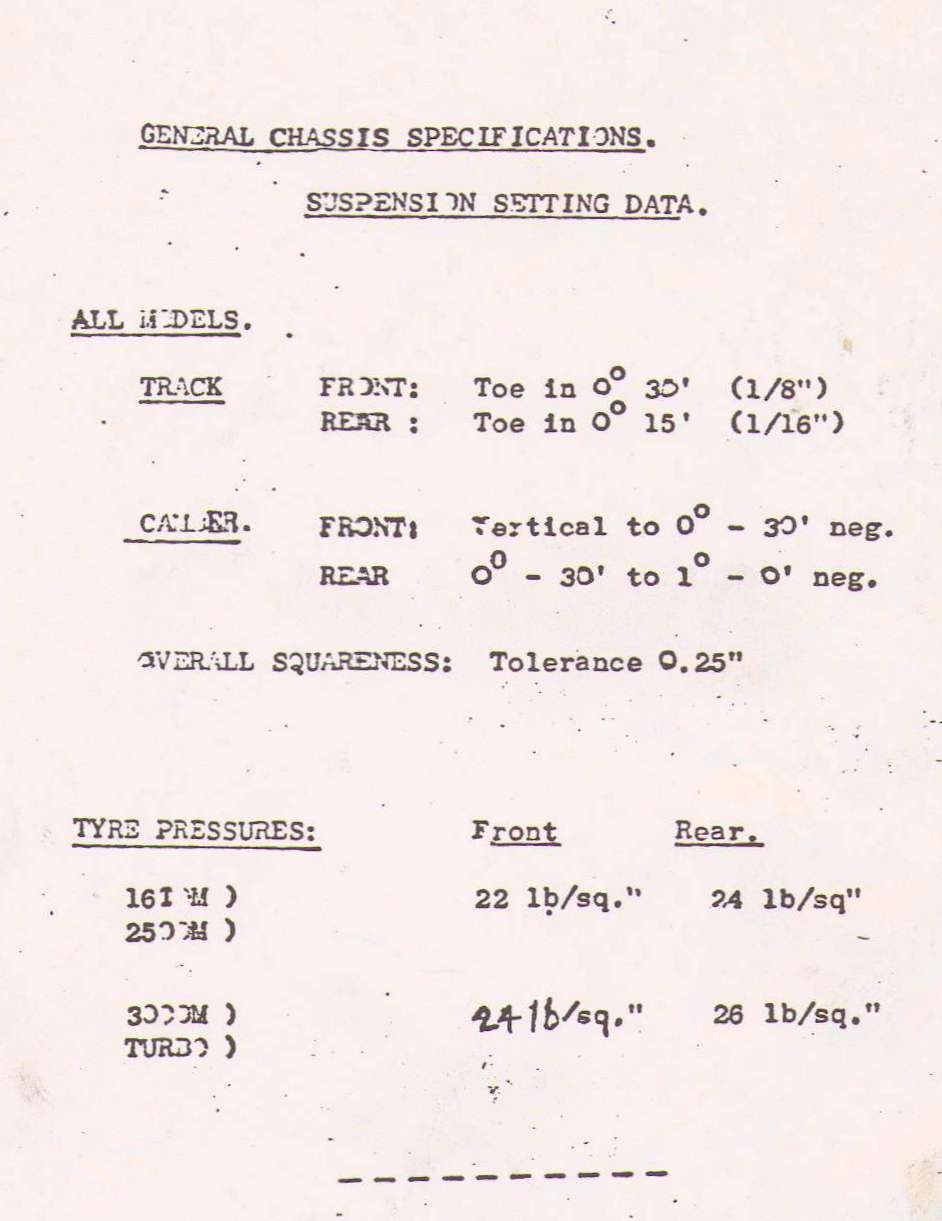

TVR 3000M Suspension Setting Data

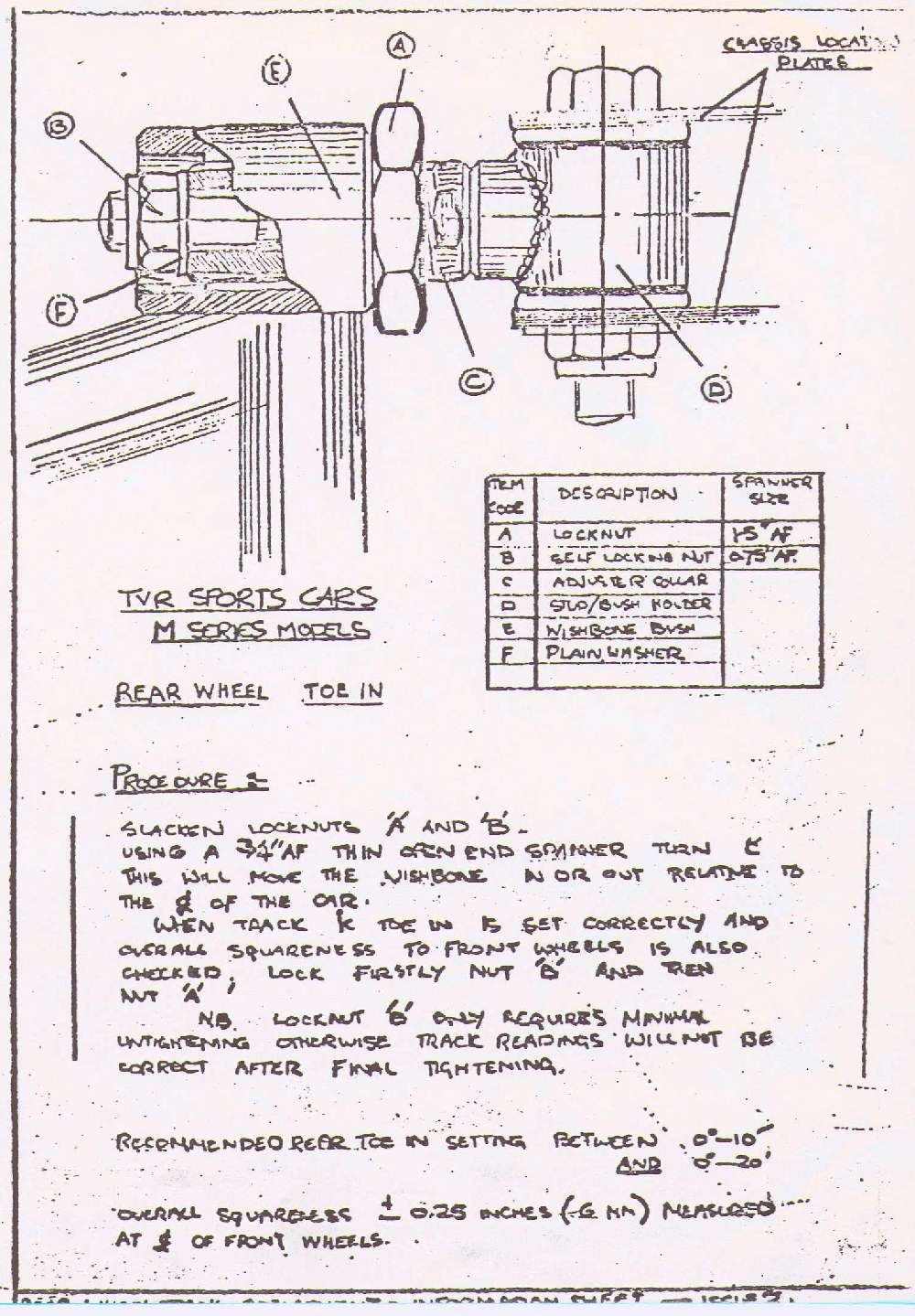

TVR 3000M Rear Wheel Toe In Procedure
TVR 3000M Rear Wheel Camber Adjustment

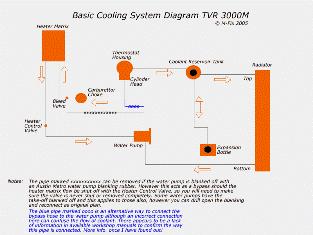

TVR Basic Cooling System Diagram TVR 3000M
TVR Wipers Info
For those of you who are trying to keep or return their car to the
original specification, I cross referenced the LUCAS wiper specification that was listed
for the 1973 (!) Vixen and early M cars
(LHD cars):
Arms : 54701986
10 ½ inch low reflectivity, 10° RH crank
as fitted to :
Triumph Spitfire MkIV, 1972, USA only, RH arm only (LH : same, but 20° crank : 54703556)
also : Triumph GT6 Mk III, 1972, USA only, RH arm only
Blades : 54702519
12 inch satin (different from low reflectivity !), off-centered hinge point (
longer part is on arm side)
rubber assembly : 54711781
as fitted to :
Triumph Spitfire MkIV, 1972, USA only
also : Triumph GT6 Mk III, 1972, USA only
Essex V6 5-Speed conversion
Many thanks to Björn Puyenbroeck for this information and help

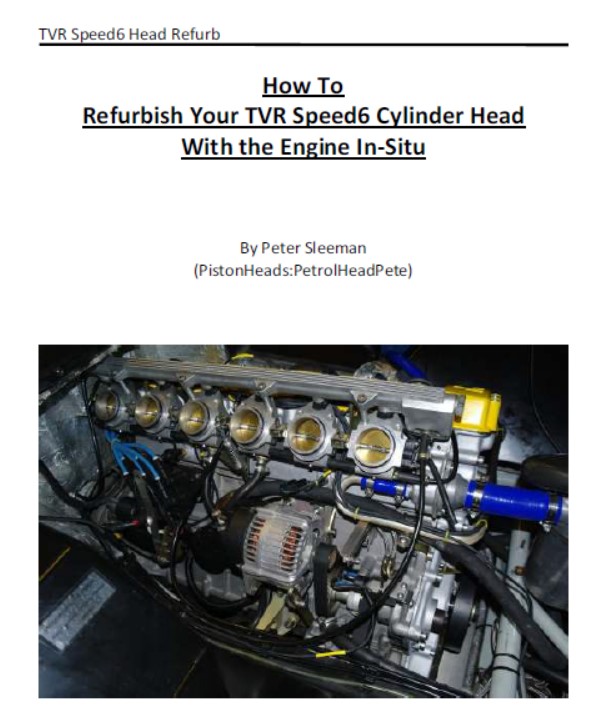

How To Refurbish Your TVR Speed6 Cylinder Head With the Engine In Vixen Owners Manual
Click to open

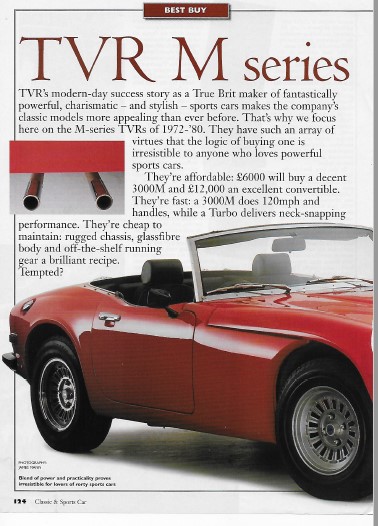

M Buyer Guide
Click to open

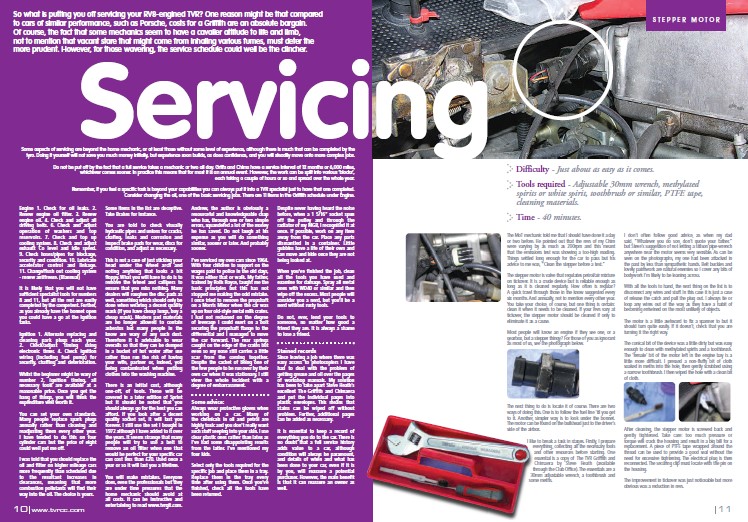

Servicing Stepper Motor
